Help Centre

Edit & Improve

Annotate and redact screenshots

Highlight the relevant action and remove sensitive information from the image used in your guide.

Source reviewed
Reading preferences
Loading reading and learning preferences…
On this page

Before you start

  • Sign in with Editor or project administrator access.
  • Open a generated guide and wait for any current save or processing action to finish.

Edit a screenshot

Crop, annotate and save a screenshotExample with sample data
Example with sample data: the screenshot editor uses the current component and a fictional sample image. Numbered callouts explain the tools. No screenshot was saved to an account.
  1. Choose Crop, Blur, Arrow, Box or Text for the intended change.
  2. Use Undo and Redo to inspect changes before saving.
  3. Save changes, then verify the image in the guide and export.

Crop, annotate and save a screenshot

Open image in new tab

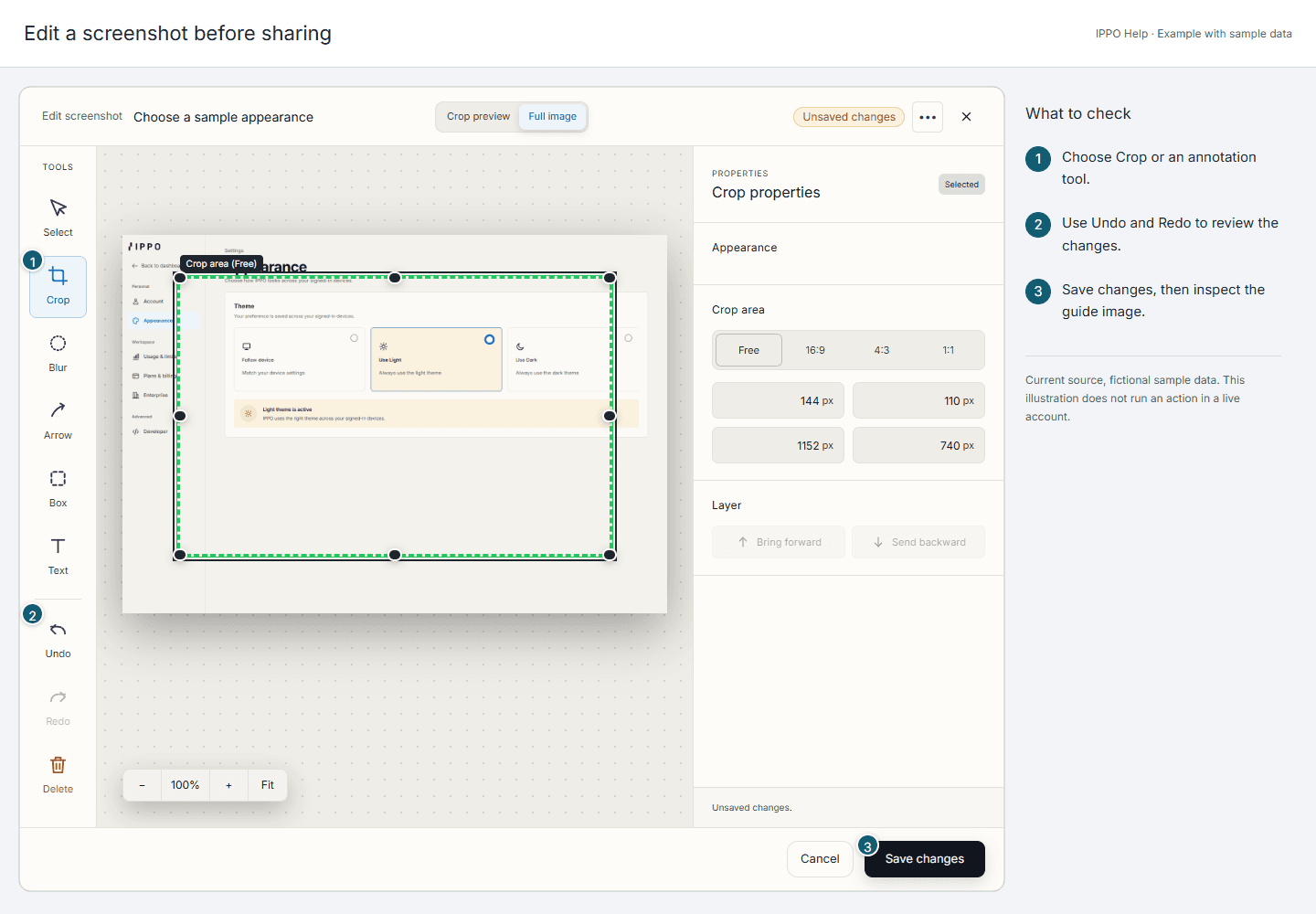

Source-rendered screenshot editor with a sample image, crop and annotation tools, Undo, Redo, and Save changes, with numbered teaching callouts.

Example with sample data: the screenshot editor uses the current component and a fictional sample image. Numbered callouts explain the tools. No screenshot was saved to an account.

  1. Select the guide step and choose Edit screenshot.
  2. Choose an annotation tool such as Arrow, Box or Text, then mark the relevant part of the screenshot. Select an existing annotation to adjust its properties.
  3. Use Blur over information that should not appear in the guide. Check the entire screenshot, including headers and background windows.
  4. Choose Save changes, then return to the guide and confirm the edited image appears on the intended step.
  5. Open an exported document before sharing and verify that annotations and redaction are present.

Crop and correct an annotation

  1. Choose Crop (C) and draw or adjust the crop area. Use the crop properties to select Free, 16:9, 4:3 or 1:1 when appropriate.
  2. Switch between Crop preview and Full image to inspect what is included. If an annotation falls outside the crop, use Show full image and move the annotation or adjust the crop.
  3. Use Undo (Ctrl+Z) to reverse an annotation change or Redo (Ctrl+Y) to reapply it. These controls work on changes in the open screenshot editor; they do not restore a whole guide version.
  4. Choose Save changes, then inspect the image in the guide and in your exported document. Cropping changes the guide image; it does not delete the original recording.

Understand redaction scope

Editing a guide screenshot does not mean that the same information has been removed from the original recording or previously downloaded files. Treat the source separately and follow your organisation's data-handling rules.

Important

For highly sensitive content, replace the image or re-record using sample data. Do not rely on automatic detection to find every private detail. Blur is not a guarantee that hidden information cannot be inferred.
